每50km点检
如下图所示，每当Z轴(3轴)的动作距离达到50km后，请给整个Z轴涂抹润滑脂。
关于Z轴(3轴)的动作距离的确认方法，请参照 "动作距离的确认"。
详细内容请咨询本公司营业部门。
If you remove the cover and apply the grease, it is dangerous due to electric shock or getting your fingers caught. Be sure to apply the grease without removing the cover.
LPH-040A1时
Before applying the grease, lower the Z-axis shaft to the lowest position.
| No. | 润滑脂的补充部位 | 润滑脂选件号 | 补充量 | 备 注 |
|---|---|---|---|---|

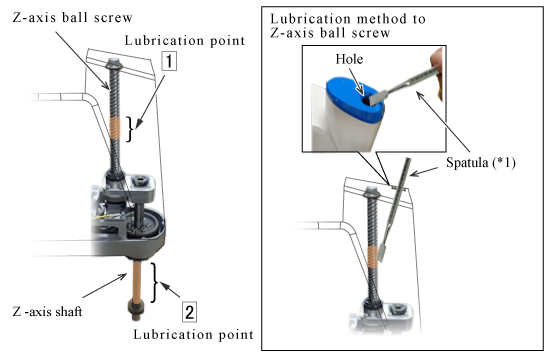

| 1 | Z-axis ball screw | 410971-0380 | 3g | With the Z-axis shaft is in the lowest position, apply the grease around the center of the Z-axis ball screw, using spatula (*1) from the hole of the upper part of the cover. |
| 2 | Z-axis shaft | 3g |
With the Z-axis shaft is in the lowest position, apply the grease to the whole Z-axis shaft.
After applying the grease, move the Z-axis shaft a few times, and then wipe off the grease accumulated in the upper and lower end of the Z-axis shaft.
|
|
|
||||
*1: Recommendation: spatula manufacturer = IDEAL TEK S.A, model = MPTSS3 Equivalent is also available (Width: less than 20 mm, length: more than 150 mm, no burr, flat)
LPH-060A1、LPH-070A1时
| No. | 润滑脂的补充部位 | 润滑脂选件号 | 补充量 | 备 注 |
|---|---|---|---|---|

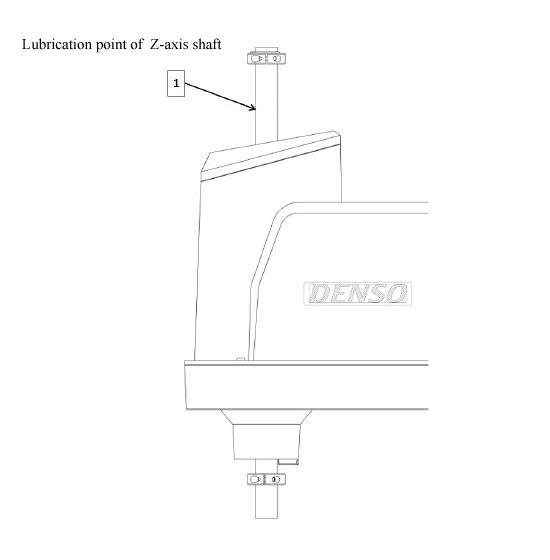

| 1 | Z轴旋转轴 | 410971-0440 | 3g | 涂抹整个Z轴旋转轴。
After applying the grease, move the Z-axis shaft a few times, and then wipe off the grease accumulated in the upper and lower end of the Z-axis shaft.
|
|
||||
